Timber Carport Karl 20.6 m²
Timber Carport Karl 20.6 m²
FREE depot freight to Adelaide, Brisbane, Canberra, Melbourne, Sydney Metro areas. DISCOUNTED depot freight to all other areas.
- Made from sustainably grown Nordic spruce
- 20.6 m² gross ground area
- 19 mm tongue and groove roof boards
- Delivered as a flat-pack kit
- Assembly guide included
- Manufactured from FSC-certified timber
Optional Add-ons
Optional Extras- Roof covering: seven rolls of SBS roofing material (one roll = 10 m), or three rolls of EPDM roofing material (one roll = 1.5 x 10 m)
- Roofing felt underlayer: seven rolls (one roll = 10 m)
- Roofing nails: two boxes of 1 kg
- Rain gutter: one 6 m flat-roof gutter
- Adjustable post leg anchors: six
-
$290
-
$860
-
$100
-
$30
-
$490
We also offer free pickups from our warehouse in Moorabbin 3189 VIC.
Reserve with a 40% deposit
Arriving in 8-14 weeks. Reserve yours with a 40% deposit ($3,288); we'll email a deposit invoice and hold your place.
Pay in full & save 3%
Prefer to pay upfront? Settle the full $7,973.40 today and save $246.60 (3% off). We'll email your invoice to confirm and hold your place.
- Sustainably Grown Materials
- Craftsmanship Made in EU
- Fast Australia-wide Delivery
Best thing we've done for the backyard - set up in a weekend and the kids practically live in it.
- Prefer to email? Email our support team
- Quick question? Message us on WhatsApp
- Want tailored advice?
Description

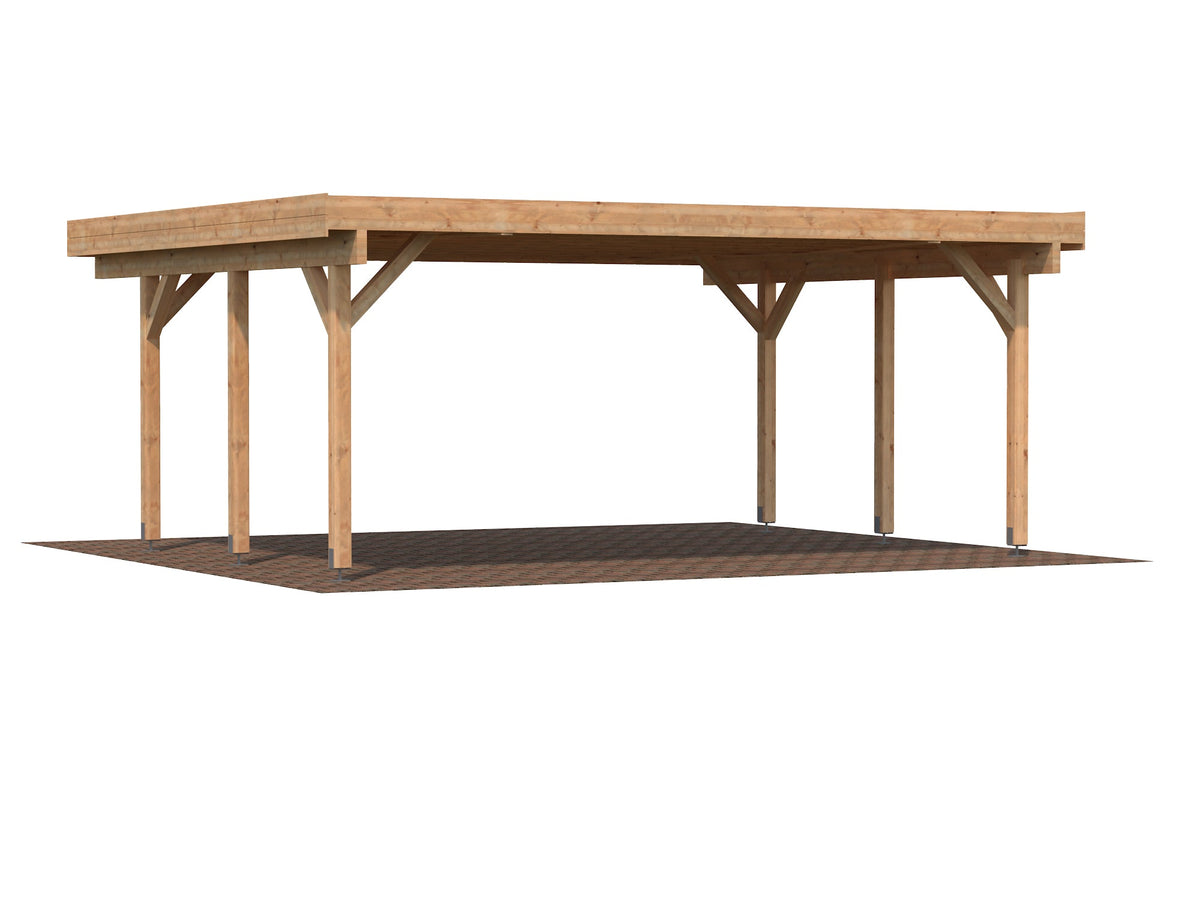

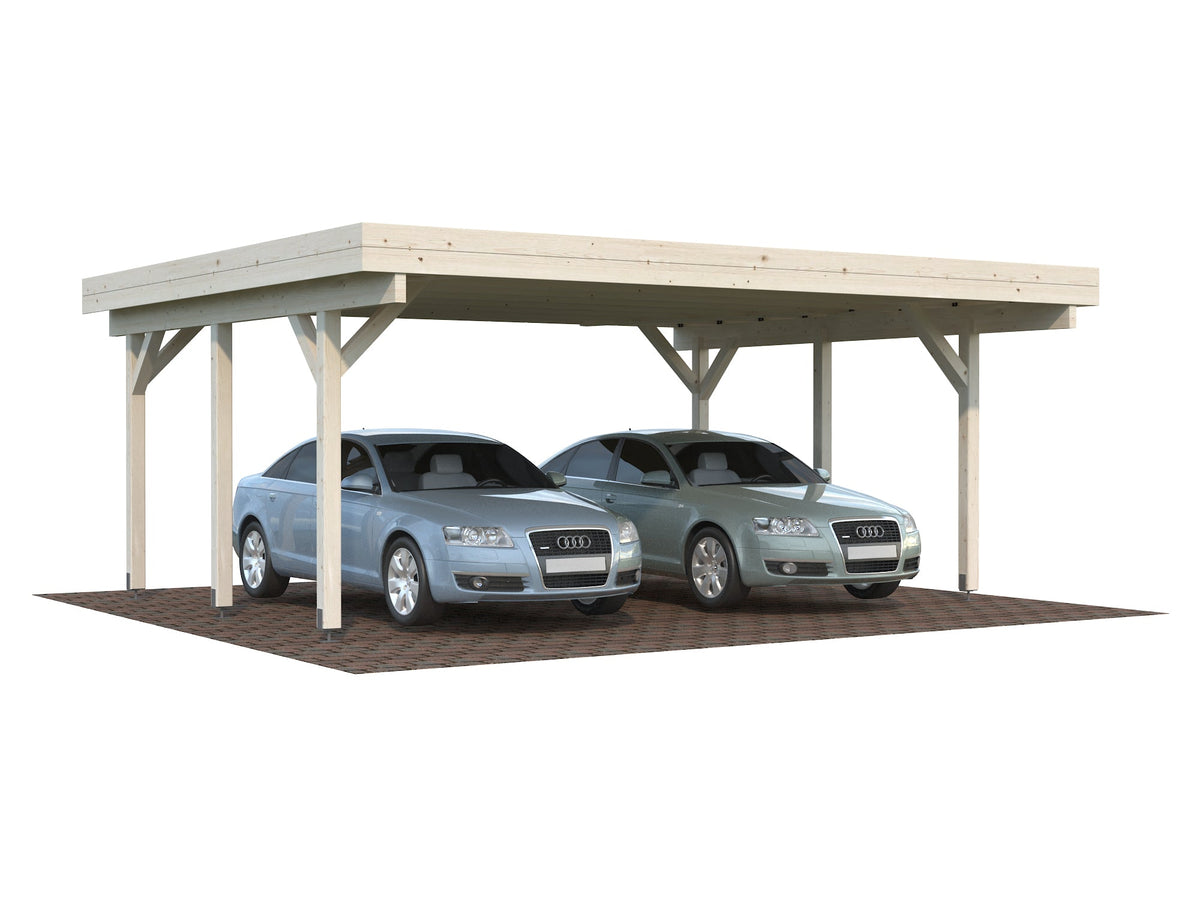

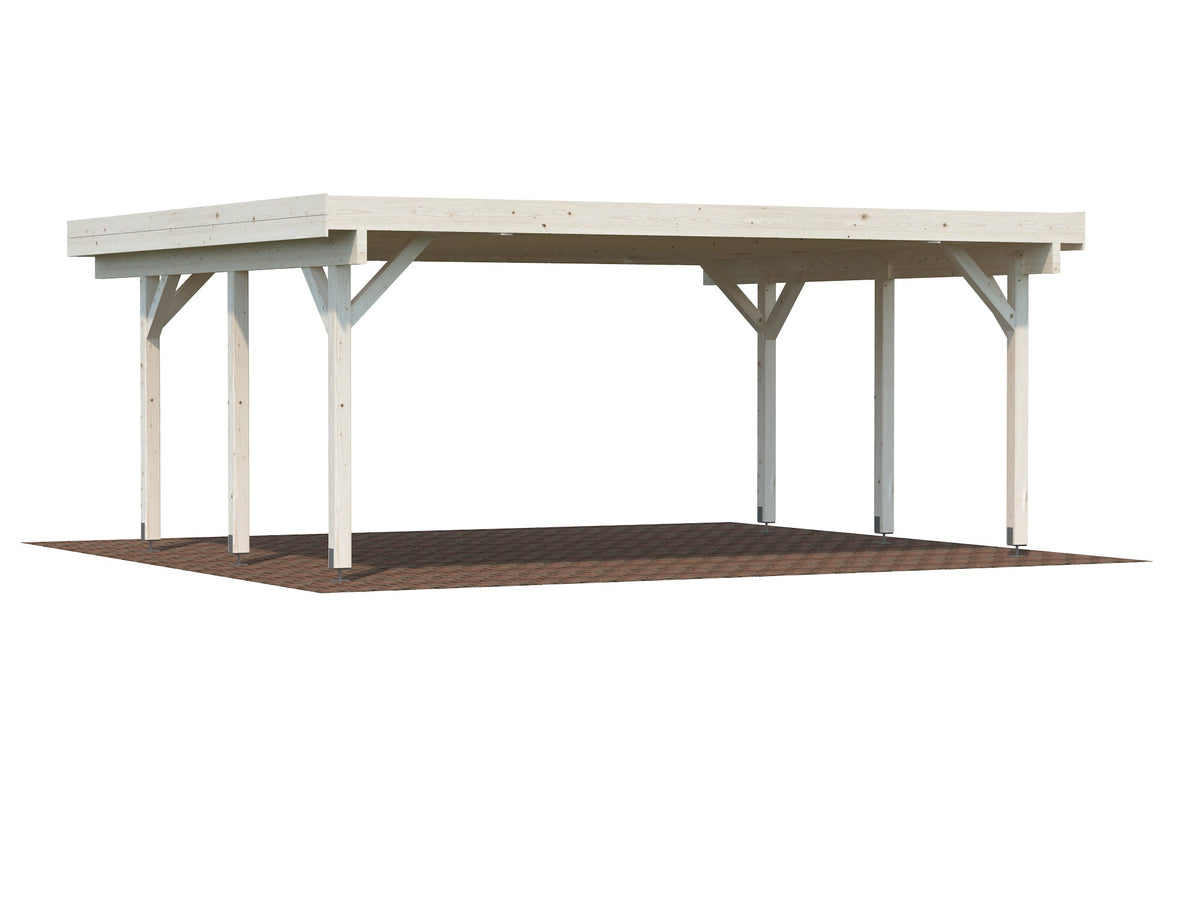

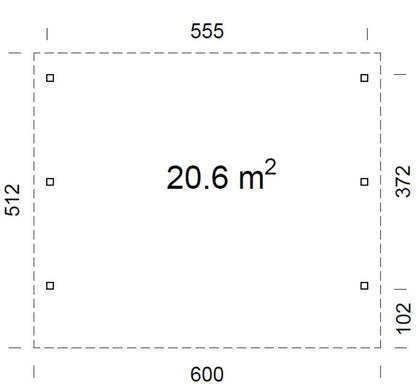

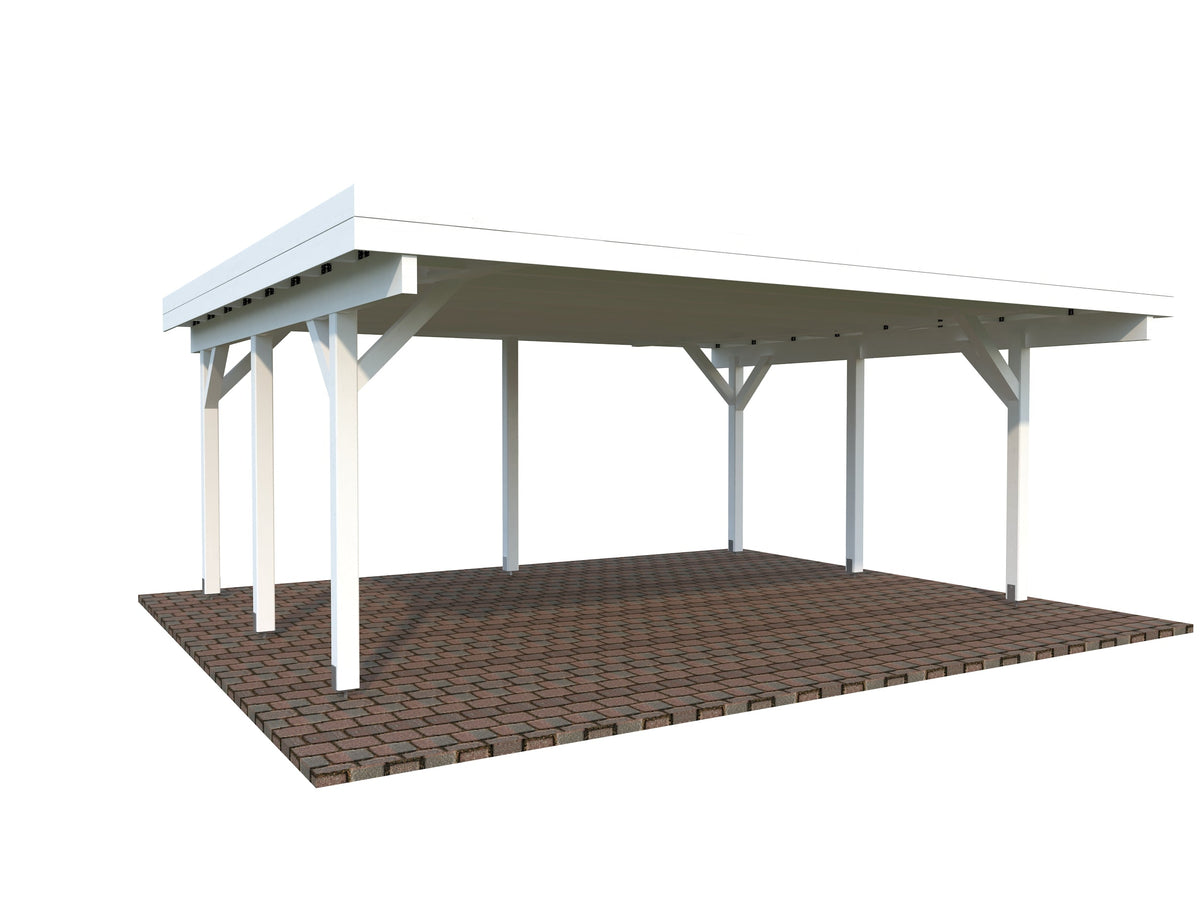

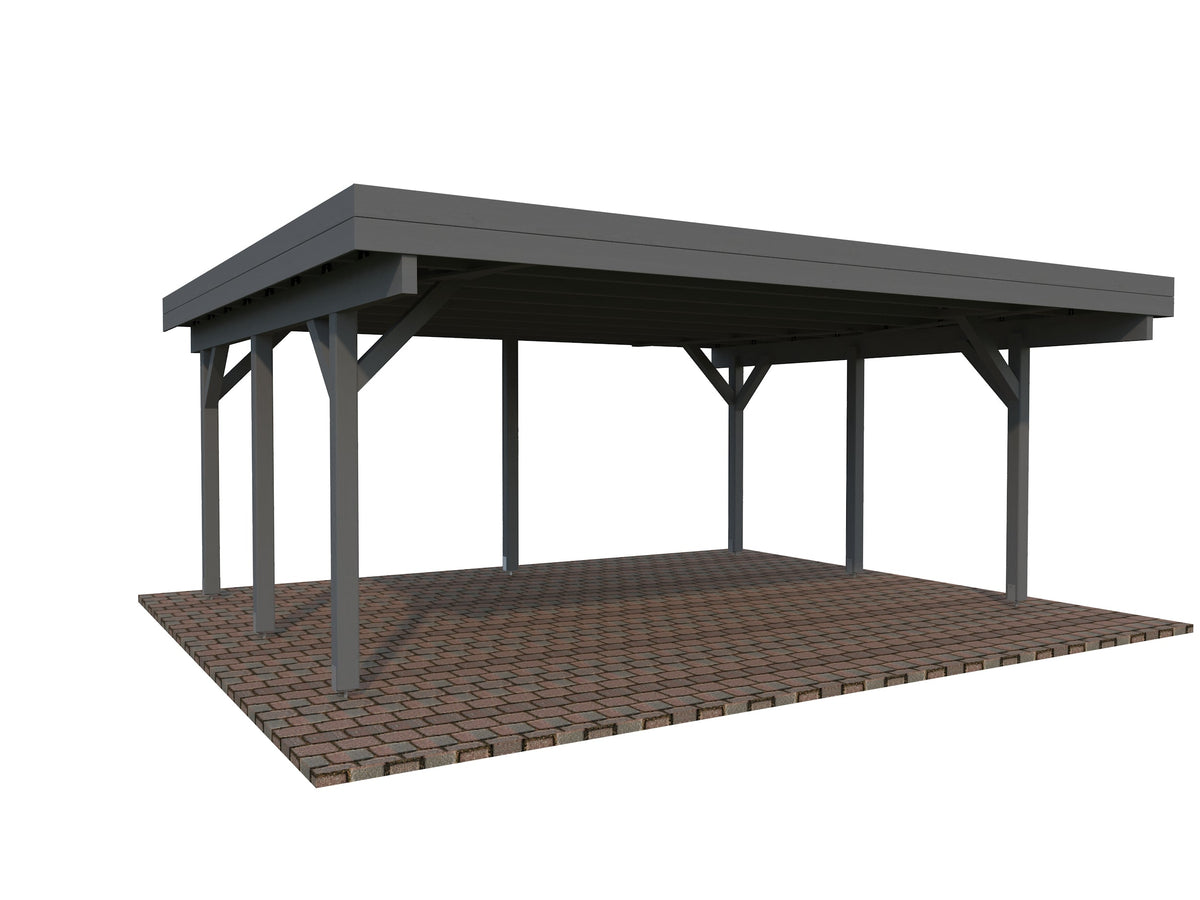

The Timber Carport Karl 20.6 m² is an open timber carport, made in Europe and built on laminated spruce posts measuring 120 x 120 mm. It covers 20.6 m² and stands on an external footprint of 555 x 372 cm, with the sides left open. The posts rise to 216 cm, with a total height of 244 cm, and the roof is set at a gradient of 1.1° with a 102 cm overhang. Roof area is 30.7 m², decked with 19 mm tongue and groove roof boards. Our Timber Carport Karl 20.6 m² gives 20.6 m² of covered open space for parking, outdoor seating or dining. The kit arrives flat-packed with all fixings, an assembly kit and an illustrated guide, and the building is assembled as shown in the provided manuals. The spruce is supplied untreated.
Features
- Laminated spruce posts, 120 x 120 mm
- Post height 216 cm, total height 244 cm
- Roof gradient 1.1°, roof overhang 102 cm
- Roof area 30.7 m², with 19 mm tongue and groove roof boards
- FSC certified timber
- Supplied untreated
- Complete flat-pack kit with all fixings and an illustrated assembly guide
Optional Extras
- Roof covering: seven rolls of SBS roofing material (one roll = 10 m), or three rolls of EPDM roofing material (one roll = 1.5 x 10 m)
- Roofing felt underlayer: seven rolls (one roll = 10 m)
- Roofing nails: two boxes of 1 kg
- Rain gutter: one 6 m flat-roof gutter
- Adjustable post leg anchors: six
Specifications
- Floor area
- 20.6 m²
- Gross ground area
- 20.6 m² (includes covered open bays, excludes roof overhang)
- Overall dimensions
- 5.55 m x 3.72 m
- Timber certification
- FSC Mix 70%
- Kit dimensions (flat-pack)
- 6.00m x 1.18m x 0.46m
- Weight
- 920 kg
- Made in
- Europe
- Delivery
- Flat-pack kit for self-assembly
Assembly
Start with the post positions. Set out the full 555 x 372 cm footprint and check the building is set-out true to requirements and as per installation manual, as the post frame has no wall course to correct a square that is out. Each post carries a share of the roof, so the ground under every one needs to be firm and level: concrete footings, screw piles or a slab all work, provided each bearing point sits at the same height. Grade the surrounding ground so surface water runs away from the base of the posts rather than standing against them. If in doubt, always consult a foundation specialist.
Keep the packs flat, dry and off the ground until you are ready. Where the timber is supplied untreated, apply at least two coats of exterior finish to all faces including cut ends, and recoat before the finish starts to fail. Coating the posts and rafters before the frame goes up is easier than reaching them afterwards.
Assemble in the order shown in the provided manuals, bracing the frame as you go and leaving the roof covering until the structure is square and fixed. Timber is a living material. It shrinks and expands based on temperature and humidity changes. This is normal, and it means the frame fixings should be checked over the first few months and with the seasons thereafter.
Our products are under continuous development and improvement. Minor variations from the details shown can occur.
