Garden Gazebo Lenna 16.6 m²
Garden Gazebo Lenna 16.6 m²
FREE depot freight to Adelaide, Brisbane, Canberra, Melbourne, Sydney Metro areas. DISCOUNTED depot freight to all other areas.
- Made from sustainably grown Nordic spruce
- 17.6 m² gross ground area
- 19 mm tongue and groove roof boards
- Delivered as a flat-pack kit
- Assembly guide included
- Manufactured from FSC-certified timber
Optional Add-ons
Optional Extras- Roof covering: four rolls of SBS roofing material (one roll = 10 m), or two rolls of EPDM roofing material (one roll = 1.5 x 10 m)
- Roofing felt underlayer: four rolls (one roll = 10 m)
- Roofing nails: one 1 kg box
- Foundation frame: one 6 x 3 m frame including LogFoot
- Rain gutter: one 3 m flat-roof gutter, one 4 m flat-roof gutter
- Internal floor: one 28 mm pack
- External terrace floor: two packs
-
$290
-
$860
-
$100
-
$30
-
$3,020
-
$390
-
$420
We also offer free pickups from our warehouse in Moorabbin 3189 VIC.
Reserve with a 40% deposit
Arriving in 8-14 weeks. Reserve yours with a 40% deposit ($3,544); we'll email a deposit invoice and hold your place.
Pay in full & save 3%
Prefer to pay upfront? Settle the full $8,594.20 today and save $265.80 (3% off). We'll email your invoice to confirm and hold your place.
- Sustainably Grown Materials
- Craftsmanship Made in EU
- Fast Australia-wide Delivery
Best thing we've done for the backyard - set up in a weekend and the kids practically live in it.
- Prefer to email? Email our support team
- Quick question? Message us on WhatsApp
- Want tailored advice?
Description

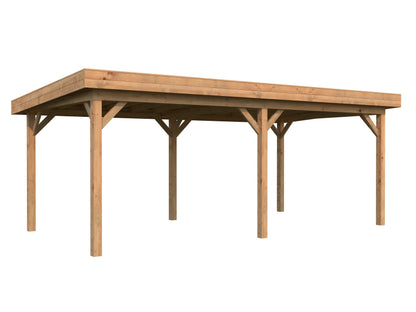

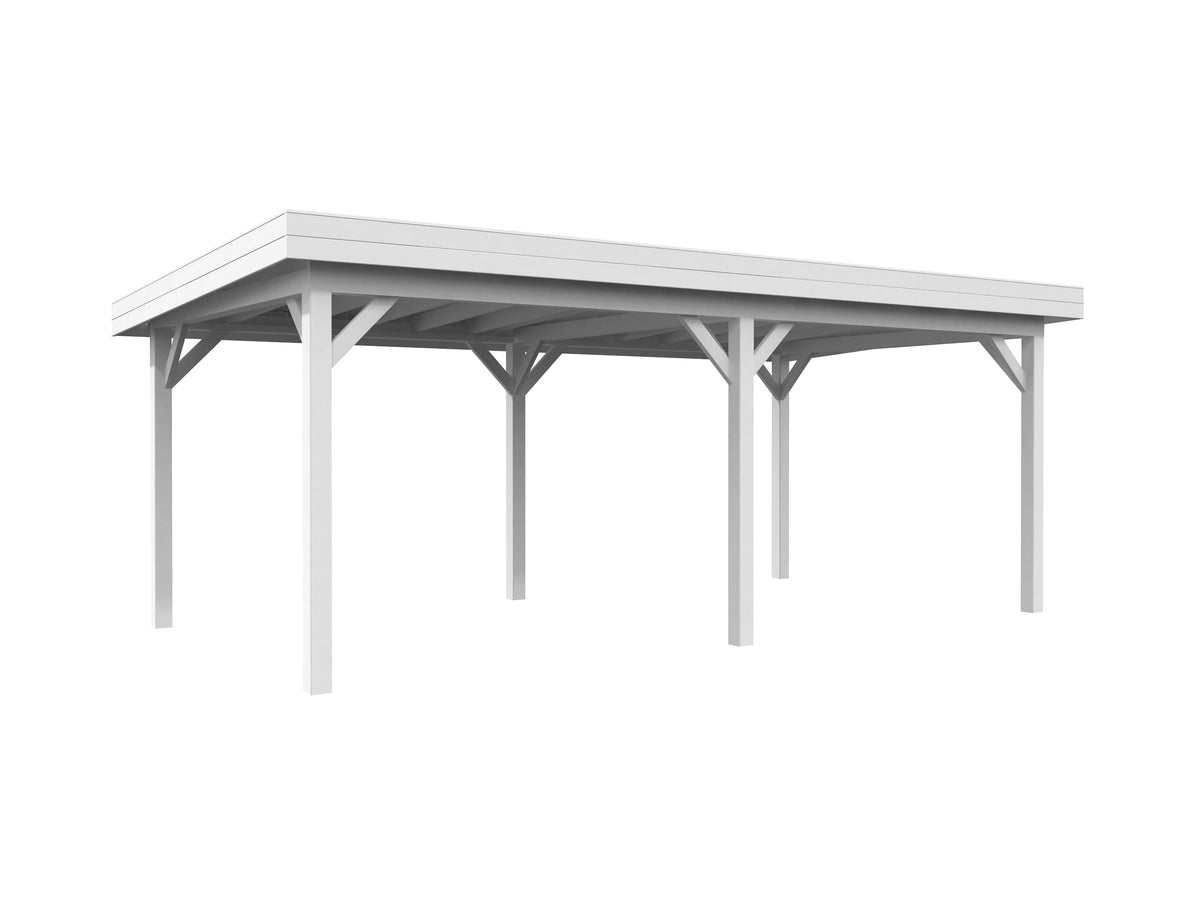

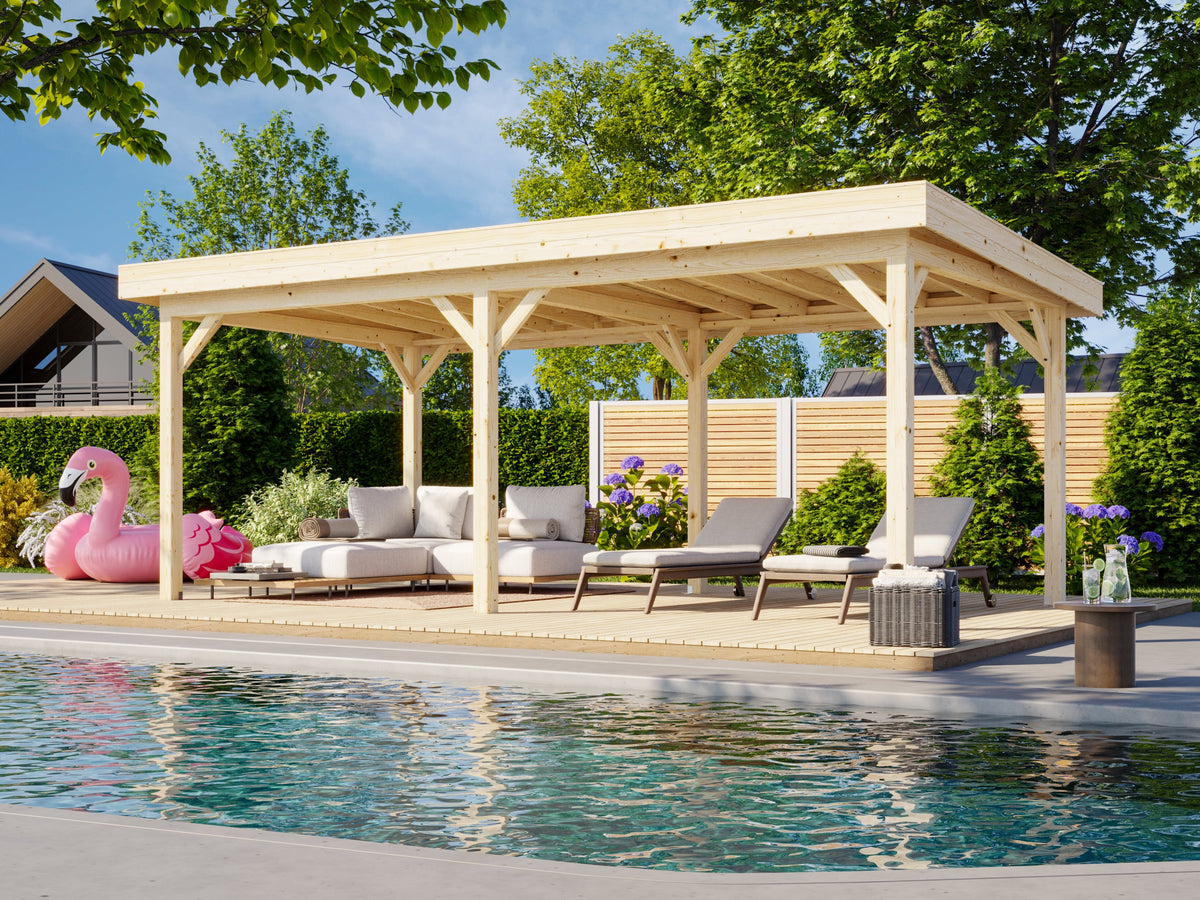

Garden Gazebo Lenna 16.6 m² is a flat-pack timber gazebo with an external footprint of 588 x 300 cm. It covers a floor area of 16.6 m², with a roof carried on laminated timber posts measuring 120 x 120 mm. Wall height is 210 cm and total height is 245 cm, giving a volume of 36.3 m³. The roof runs to 21.4 m² at a gradient of 3.0 degrees, with a 20 cm overhang and 19 mm tongue and groove roof boards. The timber is Nordic spruce, kiln-dried and machine-cut in Europe, and the kit is FSC certified. It is supplied untreated. Our Garden Gazebo Lenna 16.6 m² is sized for outdoor seating, dining or entertaining. Floor, foundation frame, roof covering and gutters are available separately, along with wall, half-wall, louvre, hatch and fence sections and a matching extra roof with two posts.
Features
- Laminated timber posts, 120 x 120 mm
- Wall height 210 cm, total height 245 cm
- Floor area 16.6 m², volume 36.3 m³
- Roof area 21.4 m² at a 3.0 degree gradient, with a 20 cm overhang
- 19 mm tongue and groove roof boards
- Nordic spruce, FSC certified, supplied untreated for your own finish
- Complete flat-pack kit with all fixings and an illustrated assembly guide
Optional Extras
- Roof covering: four rolls of SBS roofing material (one roll = 10 m), or two rolls of EPDM roofing material (one roll = 1.5 x 10 m)
- Roofing felt underlayer: four rolls (one roll = 10 m)
- Roofing nails: one 1 kg box
- Foundation frame: one 6 x 3 m frame including LogFoot
- Rain gutter: one 3 m flat-roof gutter, one 4 m flat-roof gutter
- Internal floor: one 28 mm pack
- External terrace floor: two packs
Specifications
- Floor area
- 16.6 m²
- Gross ground area
- 17.6 m² (includes covered open bays, excludes roof overhang)
- Overall dimensions
- 5.88 m x 3.00 m
- Timber certification
- FSC Mix 70%
- Kit dimensions (flat-pack)
- 4.45m x 1.18m x 0.55m and 4.45m x 0.59m x 0.50m
- Packs
- 2
- Weight
- 900 kg
- Made in
- Europe
- Delivery
- Flat-pack kit for self-assembly
Assembly
Start with the post positions. Set out the full 588 x 300 cm footprint and check the building is set-out true to requirements and as per installation manual, as the post frame has no wall course to correct a square that is out. Each post carries a share of the roof, so the ground under every one needs to be firm and level: concrete footings, screw piles or a slab all work, provided each bearing point sits at the same height. Grade the surrounding ground so surface water runs away from the base of the posts rather than standing against them. If in doubt, always consult a foundation specialist.
Keep the packs flat, dry and off the ground until you are ready. Where the timber is supplied untreated, apply at least two coats of exterior finish to all faces including cut ends, and recoat before the finish starts to fail. Coating the posts and rafters before the frame goes up is easier than reaching them afterwards.
Assemble in the order shown in the provided manuals, bracing the frame as you go and leaving the roof covering until the structure is square and fixed. Timber is a living material. It shrinks and expands based on temperature and humidity changes. This is normal, and it means the frame fixings should be checked over the first few months and with the seasons thereafter.
Our products are under continuous development and improvement. Minor variations from the details shown can occur.
Assembly manuals
Shipping & Returns
Delivery terms are shown on each product listing. Where a listing indicates depot delivery, delivery is free to our freight depots in the Adelaide, Brisbane, Canberra, Melbourne and Sydney metro areas, and quoted before purchase for destinations beyond those areas. Free warehouse pickup is available. Smaller items and accessories are sent by standard post or courier to your home address, with shipping shown at checkout.
Larger products are supplied as flat-pack kits on pallets. The number of pallets, their dimensions and their weights vary by product and are shown with each product.
You may collect your order from our warehouse or the depot, or arrange delivery from the depot to your final destination at your cost. Most depots offer delivery from the depot to your address. Unloading, access and any equipment required are organised by you with the depot or your chosen delivery provider.
Products held in stock are dispatched within 1 to 4 business days of receipt of payment. Made to order products carry a lead time of 8 to 14 weeks.
Our timber products are delivered as securely packaged, weatherproof flat packs. Construction materials, doors, windows, fixtures, hardware, and any optionally added products are included as detailed in the description. This ensures safe delivery and storage.
Warranty
Five-year timber warranty
Every Nordic Spa building is backed by a five-year warranty against defects in materials and workmanship, running from the day it is delivered. No registration, just keep your proof of purchase and look after the timber. Electrical components carry a one-year manufacturer's warranty.
Built to last
Our buildings are made from slow-grown European Nordic spruce, pine and aspen, dense and stable timber chosen for a long life outdoors. Sealed, treated and maintained as recommended, a Nordic Spa building is made to be enjoyed for many years, not a few seasons.
A few simple things keep your warranty valid:
A suitable foundation
Place your building on a firm, level, well-drained base with sufficient load-bearing capacity for the product and its intended use (account for the weight of water inside a spa, hot tub or ice bath). Preparing the foundation, and getting professional advice where the site needs it, is the owner's responsibility.
Seal the timber early
Timber is supplied either untreated or pre-treated (optional) and needs initial and regular protecting. Seal all exposed timber as soon as practicable after assembly (latest within six weeks) with a suitable exterior preservative or stain: a primer coat and at least two top coats.
Keep up the care
Re-coat at the intervals your chosen product recommends, before the finish starts to fail. Keep the base dry, drained and ventilated, and take reasonable steps against termites for your area. For a spa, keep the water balanced and the cover on when it is not in use.
Support you can rely on
Our team is here before, during and after your build to answer your product questions, to provide assembly guidance and help choosing the right model.
This warranty is in addition to your rights under the Australian Consumer Law. Read our full Warranty policy
European Made
Crafted in Europe from slow-grown timber
Every Nordic Spa building is made in Europe from sustainably slow-grown Scandinavian timber, with quality European windows, doors and fittings throughout, and a chemical-free build. Thirty years of combined experience go into every product, so what arrives in your yard is made to last decades, not seasons.
Your Space
More from your backyard, for years
A Nordic Spa building turns unused yard into a space you actually live in, whether that is somewhere to unwind, work, grow, store or gather. Built from dense European timber and finished for the weather, it stands up to the Australian outdoors and keeps earning its place season after season.
Factory Direct
Bought direct, backed by real specialists
We buy factory-direct and cut out the middle-man, so more of your money goes into the build instead of a chain of resellers. Before you order, a specialist helps you choose and size it correctly. We then ship Australia-wide to a freight depot near you, with our unmatched warranty on materials and craftsmanship behind every product.
